MDO54

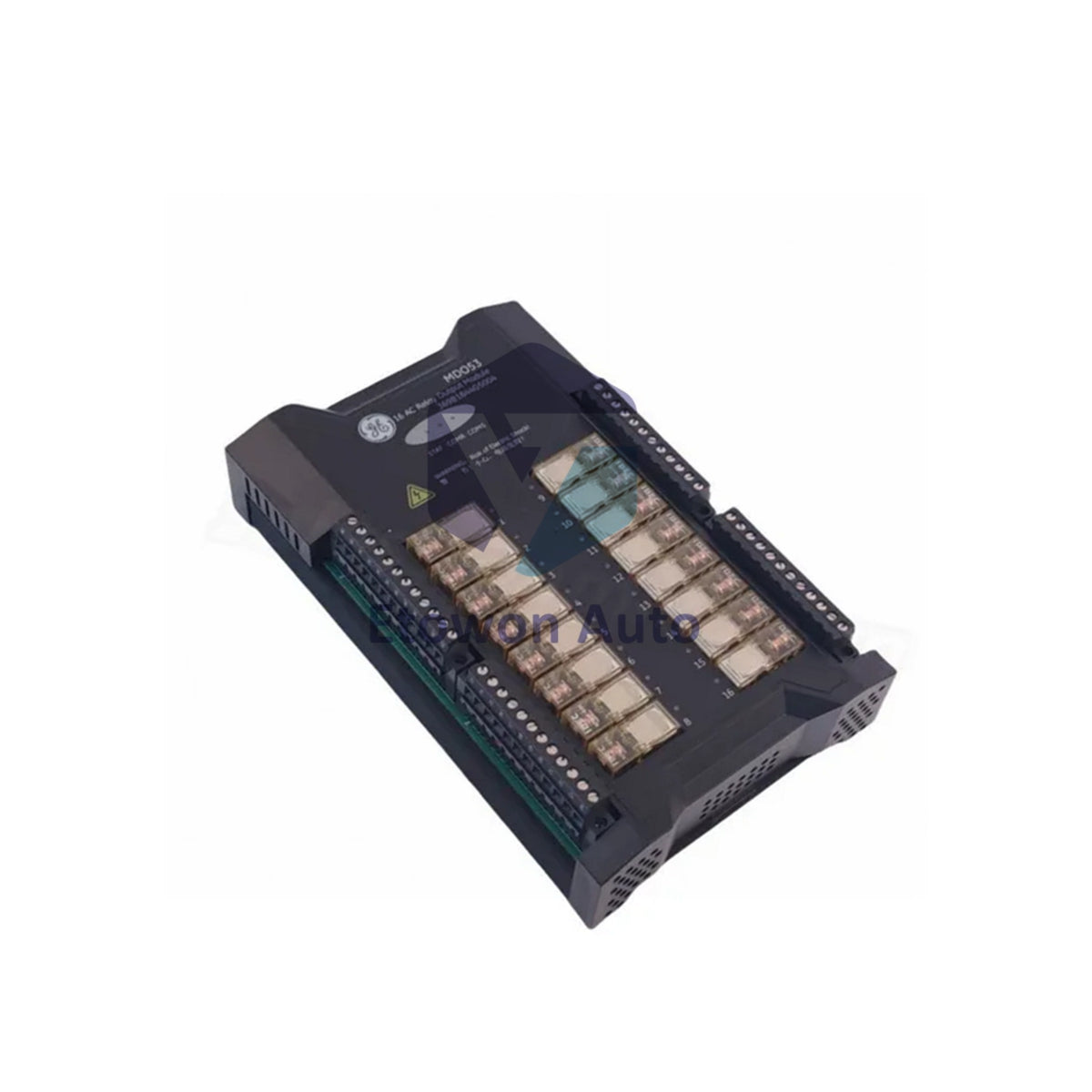

GE MDO54 369B1844G5005 24V DC 100mA Output

In stock (16 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: MDO54

  • Product Type: Digital Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 700g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE MDO54 369B1844G5005 Digital Output Module

The GE MDO54 369B1844G5005 is a 16-channel digital output module designed for industrial control systems. Weighing approximately 0.7 kg, it provides 24V DC/100mA outputs with high isolation ratings, offering reliable switching capability for interfacing with relay boards and field devices.

Product Identification

  • Manufacturer: GE Nexus (General Electric)
  • Part Number: MDO54 / 369B1844G5005
  • Product Type: Digital Output Module
  • Number of Channels: 16
  • Certification: CE Certified (with system)

Technical Specifications

Parameter Value
Weight Approx. 0.7 kg
Number of Outputs 16
Output Type 24V DC / 100 mA
Contact Capacity (Direct) N/A (requires relay board)
Relay Board Capacity 10A @ 220V DC (resistive), 16A @ 400V AC (resistive), 2A @ 220V DC (inductive), 3.6A @ 110V DC (inductive)
Channel-to-Channel Isolation 1000V AC
Channel-to-Ground Isolation 2500V AC
Channel-to-System Isolation 3000V AC
Power Consumption (Typical) 1.3 W
Power Consumption (Max) 4 W

LED Indicators

  • Channel Output LED indication per channel
  • Module Run Status
  • Communication Status
  • Fault Alarm

Features

  • 16 digital output channels for control applications.
  • High isolation: 1000V AC channel-to-channel, 2500V AC channel-to-ground, 3000V AC channel-to-system.
  • LED indication for output status, run, communication, and fault.
  • Low power consumption: 1.3W typical, 4W maximum.
  • CE certified for industrial compliance.

Installation

  • Install in Nexus system chassis.
  • Connect outputs to external relay board for high-current switching.
  • Ensure proper grounding for isolation ratings.
  • Verify output wiring within 24V DC/100mA specifications.

Technical FAQs

Q1: How many output channels does the MDO54 have?
A1: 16 digital output channels.

Q2: What is the direct output capacity?
A2: 24V DC / 100 mA per channel (requires external relay board for high-current loads).

Q3: What isolation ratings does the module provide?
A3: 1000V AC channel-to-channel, 2500V AC channel-to-ground, 3000V AC channel-to-system.
